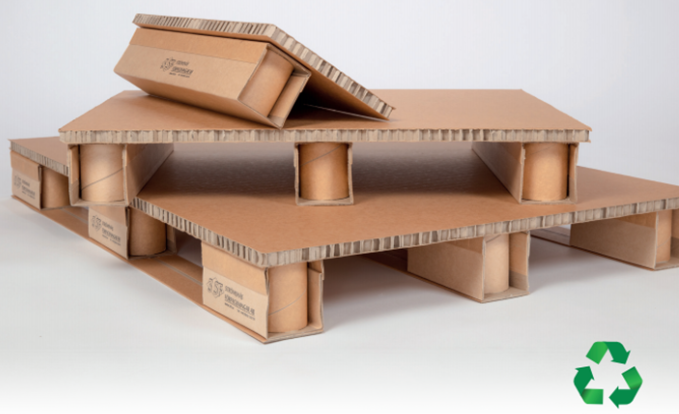

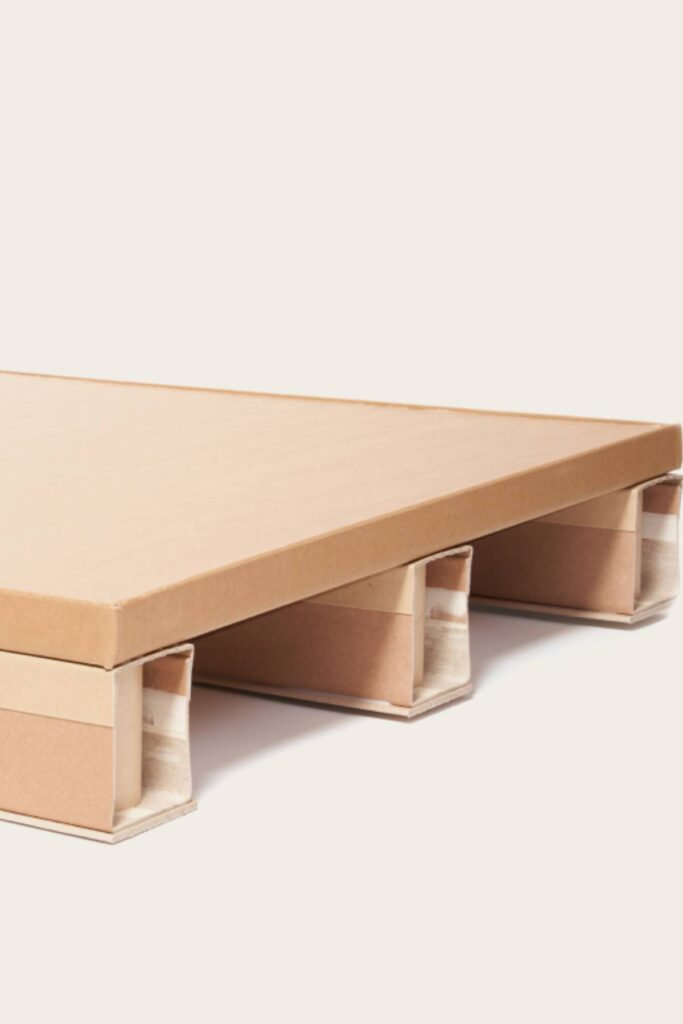

Corrugated pallet

A sustainable and cost-effective solution for pallet handling

As environmental awareness increases and demands for sustainable transport grow, more and more companies are looking for alternatives to traditional wooden pallets. Corrugated pallets, also known as corrugated cardboard pallets, are emerging as an attractive solution. Not only are they lightweight and strong, but they are also 100 % recyclable and help reduce environmental impact.

Applications for corrugated pallets

Transport: Corrugated pallets are widely used to transport goods, both indoors and outdoors. They are ideal for shorter journeys and for products that do not require extra protection.
Storage: Corrugated pallets can be used to store goods in warehouses and shops. They are lightweight and take up minimal space, making them an effective solution for space-constrained areas.
Display: Corrugated pallets can be used to create attractive product displays in shops. They can be printed with your brand and logo to increase the visibility of your products.

Load capacity

Pallet size (mm)	2-way	4-way	Load capacity (kg)
600 x 800	X		600
600 x 800		X	600
800 x 800	X		800
800 x 800		X	800
1200 x 800	X		1200
1200 x 800		X	1200

Pallet sizes

Honeycomb (mm)	Number of pallet moulds	2 / 4 - road pallet	Pallmed (mm)
1200 x 800	9 pallet moulds	4 - road pallet	100 x 90 x 195
1200 x 800	3 pallet moulds	2 - road pallet	100 x 90 x 1180
800 x 600	6 pallet moulds	4 - road pallet	100 x 90 x 195
800 x 600	3 pallet moulds	2 - road pallet	100 x 90 x 580
800 x 800	6 pallet moulds	4 - road pallet	100 x 90 x 195
800 x 800	3 pallet moulds	2 - road pallet	100 x 90 x 780

material	Kraftboard, coreboard
Self-adhesive as an option	Hotmelt with protective paper
Width A	90 mm
Height B	60 or 100 mm
Length C	As needed
Recyclable	100 %

Components for the pallet

Components Pallmed

Pallet moulds are produced in two different sizes Its unique structure and the raw material used provide excellent water resistance and ability to carry heavy loads.

Standard coatings	Kraftliner 250 g - Kraftliner 400 g
Recyclable	100 %
Cell size	8 or 12 mm
Maximum width	1500 mm
Thickness	15 or 20 mm
Maximum length	4000 mm

Honeycomb components

Honeycomb is 100 % recyclable laminated paper product.
Its hexagonal inner cell structure and superior raw materials provide outstanding compressive strength and rigidity, withstanding impact and high loads for "strong packs".

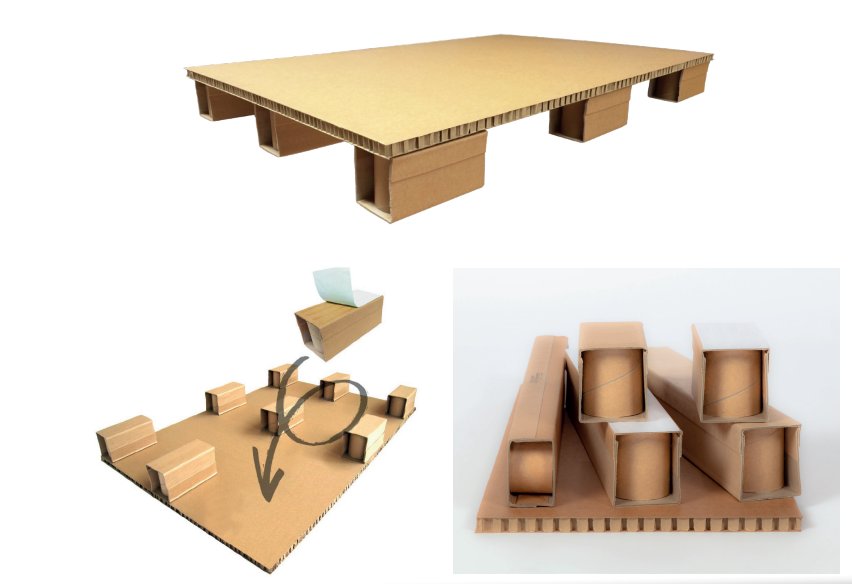

Easy to assemble

You can assemble yourself, remove paper covers and press hard.

Specifications

Material: 7-layer corrugated board ABE-wave
Thickness: 8mm

Inner dimensions:
Bottom - frame: 1160 x 760 x 280 mm
Frame: 1160 x 760 x 260 mm
Lock: 1190 x 790 x 130 mm

Weight:
Bottom frame: 3640 g
Ram: 2620 g

Are you looking for the complete solution?

Our range also includes everything from corrugated sheets, corrugated collars and other types of pallets. Explore our full range or contact us for a customised solution!
