Description and use:

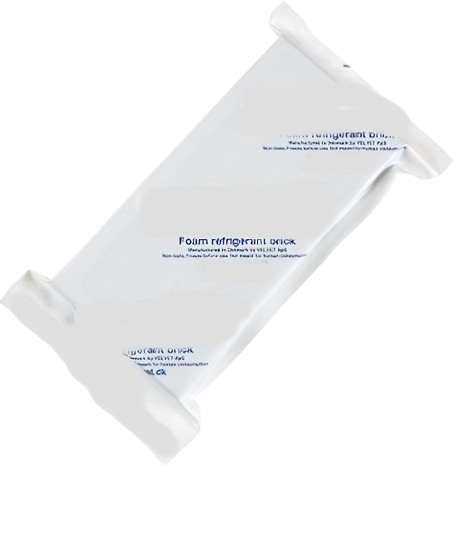

The cooling element is a water-filled foam block tightly enclosed in a strong plastic film.
The element is frozen before use and then packed with goods that are to be kept refrigerated.
Delivery:
Supplied in boxes of 24 pieces. Can be packed with up to 1200 pieces per Euro pallet (50 boxes).
Dimension: 115 x 110 x 40 mm
Sustainability:
At least 2 years (however, direct sunlight must be avoided for a longer period).
Material:
The film is made of LD polyethylene with EVA, thickness 150 microns.
DS standard / DIN standard: PE-LD04, PE-HD02, PE-MD02
Complies with the heavy metal content limit value in accordance with 94/62/EEC
The liquid in the element is water.
The foam block is phenofoam. In its foamed state, phenofoam is neutral and therefore not harmful to humans or the environment.
Availability:
Can be incinerated in the same way as household waste.
Description and use:
The cooling element is a water-filled foam block tightly enclosed in a strong plastic film. The element is frozen before use and then packed with goods that are to be kept refrigerated.
Delivery:
Supplied in boxes of 12 pieces. Can be packed with up to 600 pieces per Euro pallet (50 boxes).
Dimension:
230 x 110 x 40 mm
Sustainability:
At least 2 years (however, direct sunlight must be avoided for a longer period).
Material:
The film is made of LD polyethylene with EVA, thickness 150 microns.
DS standard / DIN standard: PE-LD04, PE-HD02, PE-MD02
Complies with the heavy metal content limit value in accordance with 94/62/EEC
The liquid in the element is water.
The foam block is phenofoam. Fenofoam in its foamed state is
neutral and therefore not harmful to either humans or the environment.
Availability:
Can be incinerated in the same way as household waste.
1. purpose
To demonstrate the effect of a traditional water based cooling element and a cooling element from Globalpack AB.
2. Execution of the study
Two calibrated temperature loggers were each placed in a polystyrene box. In box 1 there
was a traditional cooling element and in box 2 there was a cooling element from Globalpack.
- Before the start of the test, the polystyrene boxes have room temperature
- Both cooling elements had a starting temperature of -18 °C and were each placed in a polystyrene box
- Calibrated loggers from
(placed in each box) monitored the process for 24 hours
- The logging was recorded every 6 minutes.
3 Conclusion

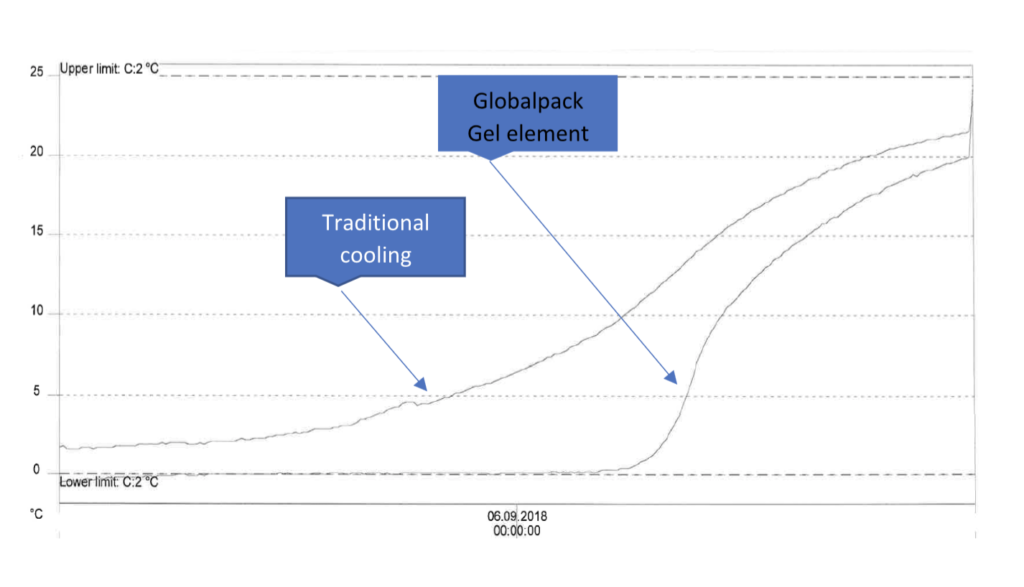

The test clearly shows that a gel cooling element from Globalpack (GEL400) is able to maintain and remain cold for a longer period of time as shown in the graph. E.g. this study shows: GEL400 is able to maintain temperature below 5 °C for 59,3 % longer than a traditional element.
GEL400 is able to maintain temperature below 8 °C for 24,5 % longer than a traditional water based element.
